LITHIUM KIT SPECIFICS
  •   Lithium Dual Battery 100 Kit

    1 X 100 AH Lithium Battery (Size in mm: 305L x 168W x 215H Weight: 11.9kg)
    1 X REDARC 60 Amp Fuse Kit
    1 X REDARC SBI12-3343 Low Voltage Disconnect
    1 X REDARC LFP1240 DC DC Charger with inbuilt MPPT Regulator

  •   Lithium Dual Battery 160 Kit

    1 X 160 AH Lithium Battery (Size in mm: 485L x 170W x 242H Weight: 23kg)
    1 X REDARC 60 Amp Fuse Kit
    1 X REDARC SBI12-3377 Low Voltage Disconnect
    1 X REDARC LFP1240 DC DC Charger with inbuilt MPPT Regulator



ABOUT US


Revolution Power Australia is the sole distributor of Revolution Power Lithium Batteries for Australasia. Our head office and warehouse facility in Brisbane allow us to provide quick and efficient service to our clients. We are a division of the Revolution Group, who provide a range of products and services for the marine, 4x4, caravan and truck markets.

Revolution Power Australia is committed to providing power solutions for our clients. A large distribution network throughout Australia and the South Pacific will ensure you select and install a battery system that meets the requirements of your unique application.

Our partners and clients recognize our commitment to quality products and value our customer service. We pride ourselves in building relationships and look forward to working with you.



PRODUCT RANGE

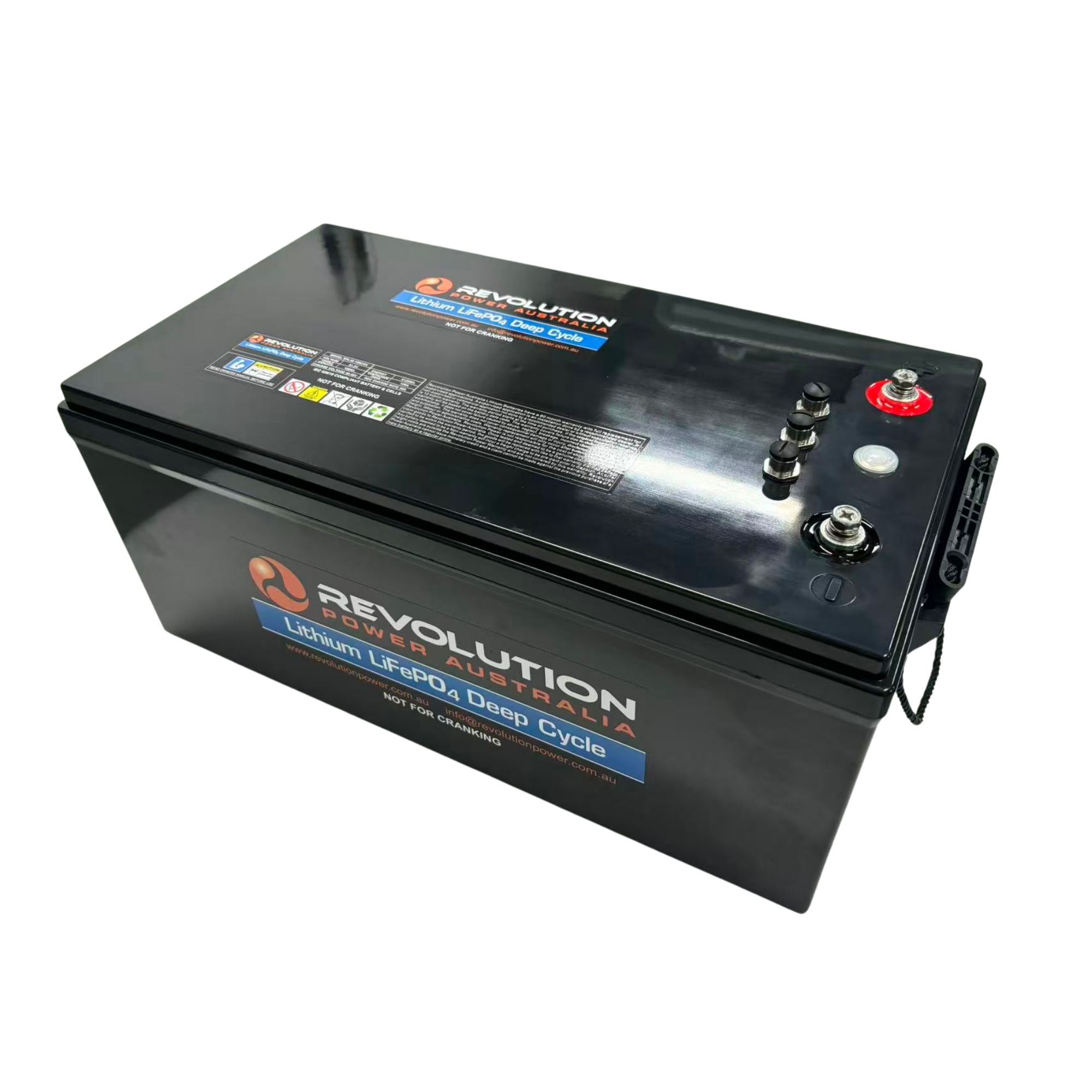

LITHIUM BATTERIES

Model
Voltage
Amp hour
Weight
Dimensions (mm)
RRP
Lith 12 100
12
100
11.9 Kg
305L x 168W x 215H
$1,953.00 rrp
Lith 12 160
12
160
23 Kg
485L x 170W x 242H
$3,124.00 rrp
Lith 24 200
24
200
80 Kg
510L x 345W x 285H
POA
Custom sizes and 24/48-volt configurations available upon request.

AC CHARGERS

Model
Voltage
Size
RRP
LithAC - 45Amp
12
45 amp
$389,00
DC CHARGERS

Model
Voltage
Size
RRP
Redarc LFP 1225
12
25amp w/solar input
$780.21
Redarc LFP 1240
12
40amp w/solar input
$906.27
Redarc LFP 2420
24
20amp w/solar input
$818.85


BATTERY FACTS


STANDARD FEATURES

  •   Built in Management System (BMS)
  •   Low Voltage and over charge cut-out
  •   Automatic re-connect for low & high voltage disconnect
  •   BMS controlled cell balancing
  •   Short circuit disconnect
  •   Sealed Polycarbonate Case
  •   3 Year Warranty on approved installations
BATTERY DETAILS

Model: Lith12 100
Model: Lith12 160
Model: Lith24 200
Nominal capacity :
100 Amp Hour
160 Amp Hour
200 Amp Hour
Nominal voltage :
12v
12v
24v
Life Cycles* :

80%DOD 2000 Cycles
50% DOD 5000 Cycles
80%DOD 2000 Cycles
50% DOD 5000 Cycles
80%DOD 2000 Cycles
50% DOD 5000 Cycles
Self discharge rate :
≤3%
≤3%
≤3%
Charge Voltage :
14.6v
14.6v
29.2v
Max & Min Voltage Cut-off :

Max Charge: 15.6v
Min Discharge: 10v
Max Charge: 15.6v
Min Discharge: 10v
Max Charge: 31.2v
Min Discharge: 20v
Charge current :

Recommended 20A
Max 50A
Recommended 40A
Max 80A
Recommended 20A
Max 100A
Discharge Current :

Recommended 35A
Max 100A
Recommended 45A
Max 100A
Recommended 100A
Max 200A
Optimum Operating Temperature :
-10~50ºC
-10~50ºC
-10~50ºC
Optimum Storage Temperature :
-20~50ºC
-20~50ºC
-20~50ºC
Case :
Polycarbonate
Polycarbonate
Coated Metal
Waterproof Grade :
IP54
IP54
STANDARDS AND TESTING

  •   ISO 9001
  •   CE Certification
  •   RoHS Certification
  •   SGS & Intertek Audited Annually
WARRANTY POLICY

Revoultion Power Australia Lithium Batteries have a 36 month warranty for supervised applications. A supervised application is an installation where Revolution Power Australia is involved with the contractor or client and approves the set-up. Non-supervised or commercial applications that we are not consulted have a 12-month warranty. The warranty period starts at the time of purchase. If the original receipt is lost, the warranty will be based on the battery date code. The warranty covers failure due to defects in material or workmanship. It does not cover failure caused by abuse, neglect, breakage, incorrect charging or discharging and sulphation. The warranty does not cover consequential damage or injury, discharge batteries, rental, freight, labour or administrative costs. Warranty replacement will only occur after batteries are returned to base, tested and battery failure deemed to be a genuine claim. Revoultion Power Australia cannot issue monetary credit and a claim cannot be made against the previous purchase of a new battery at regular price.

AFTER SALE SUPPORT

A large distribution network supports Revolution Power Australia’s Batteries throughout Australia and the South Pacific. This network of knowledgeable distributors will help you select and install a battery system that meets the requirements of your specific application. Our network provides Technical and Installation advice, along with technical and Material Data Sheets.

PARTNERS



  • REDARC

  • REVOLUTION MARINE SERVICES

  • 4WD TOURING

  • TRAYON CAMPERS

  • ALL 4 ADVENTURE
